STAINLESS STEEL WIRE & RODS – MIG & TIG

Our stainless steel welding consumables, covering grades ER307, ER308, ER308L, ER309, ER309L, ER310, and ER316L, are engineered to deliver superior corrosion resistance, stable arc performance, and consistent mechanical properties across a wide range of industrial and critical applications. Manufactured in accordance with AWS A5.9 / ASME SFA 5.9 and EN ISO 14343-A standards, these products ensure global compliance, metallurgical consistency, and reliable welding performance in demanding service environments.

Enquire Now

Types Of Stainless Steel

ER 307 MIG / TIG
ER 308 MIG / TIG
ER 308L MIG / TIG
ER 309 MIG / TIG
ER 309L MIG / TIG
ER 310 MIG / TIG
ER 316L MIG / TIG
ER 307
ER 310
ER 310
ER 316L
ER 316L
ER 310
ER 310
ER 309L
ER 309L
ER 309
ER 309
ER 308L
ER 308L
ER 308
ER 308

SPECIFICATIONS

MECHANICAL & CHEMICAL
Parameters

MIG WIRE
AWS 5.9 ER 307 ER 308 ER 308L ER 309 ER 309L ER 310 ER 316L
ASME SFA 5.9 ER 307 ER 308 ER 308L ER 309 ER 309L ER 310 ER 316L
EN ISO 14343-A G 18 8 Mn G 19 9 G 19 9 L G 23 12 G 23 12 L G 25 20 G 19 12 3 L
TS (N/mm²) 650 580-630 483-621 621 625 634 551
YS (N/mm²) 465 345-483 345-448 414 420 434 379
EL (%) 40 30-40 30-40 35 33 30 35
C% 0.08 0.04 0.023 0.061 0.021 0.087 0.048
Mn% 4.5 1.80 1.63 1.61 1.93 2.00 1.75
Si% 0.43 0.31 0.4 0.4 0.34 0.38 0.45
P% 0.012 0.013 0.013 0.012 0.012 0.011 0.011
S% 0.011 0.008 0.009 0.013 0.008 0.009 0.01
Cr% 20.02 20.15 20.12 23.85 23.9 27.42 19.63
Ni% 9.52 9.53 10.35 13.06 12.92 24.82 12.52
Mo% 0.97 0.43 0.37 0.23 0.39 0.16 2.5
TIG ROD
AWS 5.9 ER 307 ER 308 ER 308L ER 309 ER 309L ER 310 ER 316L
ASME SFA 5.9 ER 307 ER 308 ER 308L ER 309 ER 309L ER 310 ER 316L
EN ISO 14343-A W 18 8 Mn W 19 9 W 19 9 L W 23 12 W 23 12 L W 25 20 W 19 12 3 L
TS (N/mm²) 650 550-630 483-621 621 625 634 551
YS (N/mm²) 465 345-483 345-448 414 420 434 379
EL (%) 40 30-40 30-40 35 33 30 35
C% 0.08 0.04 0.023 0.061 0.021 0.087 0.048
Mn% 4.5 1.80 1.63 1.61 1.93 2.00 1.75
Si% 0.43 0.31 0.4 0.4 0.34 0.38 0.45
P% 0.012 0.013 0.013 0.012 0.012 0.011 0.011
S% 0.011 0.008 0.009 0.013 0.008 0.009 0.01
Cr% 20.02 20.15 20.12 23.85 23.9 27.42 19.63
Ni% 9.52 9.53 10.35 13.06 12.92 24.82 12.52
Mo% 0.97 0.43 0.37 0.23 0.39 0.16 2.5

In addition to our standard stainless steel welding wires, we offer an extended range of austenitic, dissimilar, heat-resistant, and duplex stainless steel consumables. These products are available in solid, TIG, and flux cored variants in accordance with AWS A5.9 and International standards, tailored to meet specific corrosion, temperature, and application requirements.

Extended Product Range

Austenitic Stainless Steel
Welding Wires

  • AWS A5.9 ER308LSi
  • AWS A5.9 ER316LSi
  • AWS A5.9 ER317
  • AWS A5.9 ER317L
  • AWS A5.9 ER318
  • AWS A5.9 ER318Si

Dissimilar Welding &
Buffer Layer Wires

  • AWS A5.9 ER309LSi
  • AWS A5.9 ER309MoL
  • AWS A5.9 ER312

Heat Resistant & High
Temperature Grades

  • AWS A5.9 ER321 (Ti Stabilized)

Duplex & Super Duplex
Stainless Steel

  • AWS A5.9 ER2209 (Duplex)
  • AWS A5.9 ER2594 (Super Duplex)

Flux Cored & Special
Process Variant

Available in:
  • Flux Cored (FCAW) stainless steel wires
  • Solid MIG (GMAW) wires
  • TIG (GTAW) rods
BASIC CUSTOMISE ARE :
  • Customised Logo
  • Customised Graphic design
  • Customised Packing
  • Diameter
  • Material
  • Minor customisation
  • Drawing based customization
  • Sample based customization
  • Full customization

TECHICAL SPECIFICATION

Grade ER 316L ER 308L
TIG Rod Diameter 3.2 / 2.4 / 1.6 mm 3.2 / 2.4 / 1.6 mm
TIG Cut Length 1000 mm 1000 mm
MIG Wire Diameter 1.6 / 1.2 / 1.0 / 0.8 mm 1.6 / 1.2 / 1.0 / 0.8 mm
TIG Shielding Gas Pure Argon (Ar) Pure Argon (Ar)
MIG Shielding Gas Ar + CO₂ / Ar + O₂ Ar + 1 - 2% O₂ / Ar + CO₂
TIG Surface Condition Bright Bright
MIG Surface Condition Copper-coated / Bright Copper-coated / Bright
Form Wire / Rod / Flux - GMAW / GTAW / FCAW Wire / Rod / Flux - GMAW / GTAW / FCAW
Application
  • Marine
  • Chemical
  • Pharma
  • Food Industry
  • Food Industry
  • Chemical equipment
  • Piping
Features
  • Excellent pitting resistance
  • Superior corrosion resistance
  • Low carbon
  • Excellent corrosion resistance
  • Good weldability
  • Smooth finish

Want to purchase or enquire?

Tap Contact Us to chat with us.

Enquire now ▾
WhatsApp Instagram Email

PACKAGING AND LOADABILITY

Seaworthy export packing suitable for bulk industrial handling. Wooden cases are internally lined and externally strapped to prevent damage during transit.

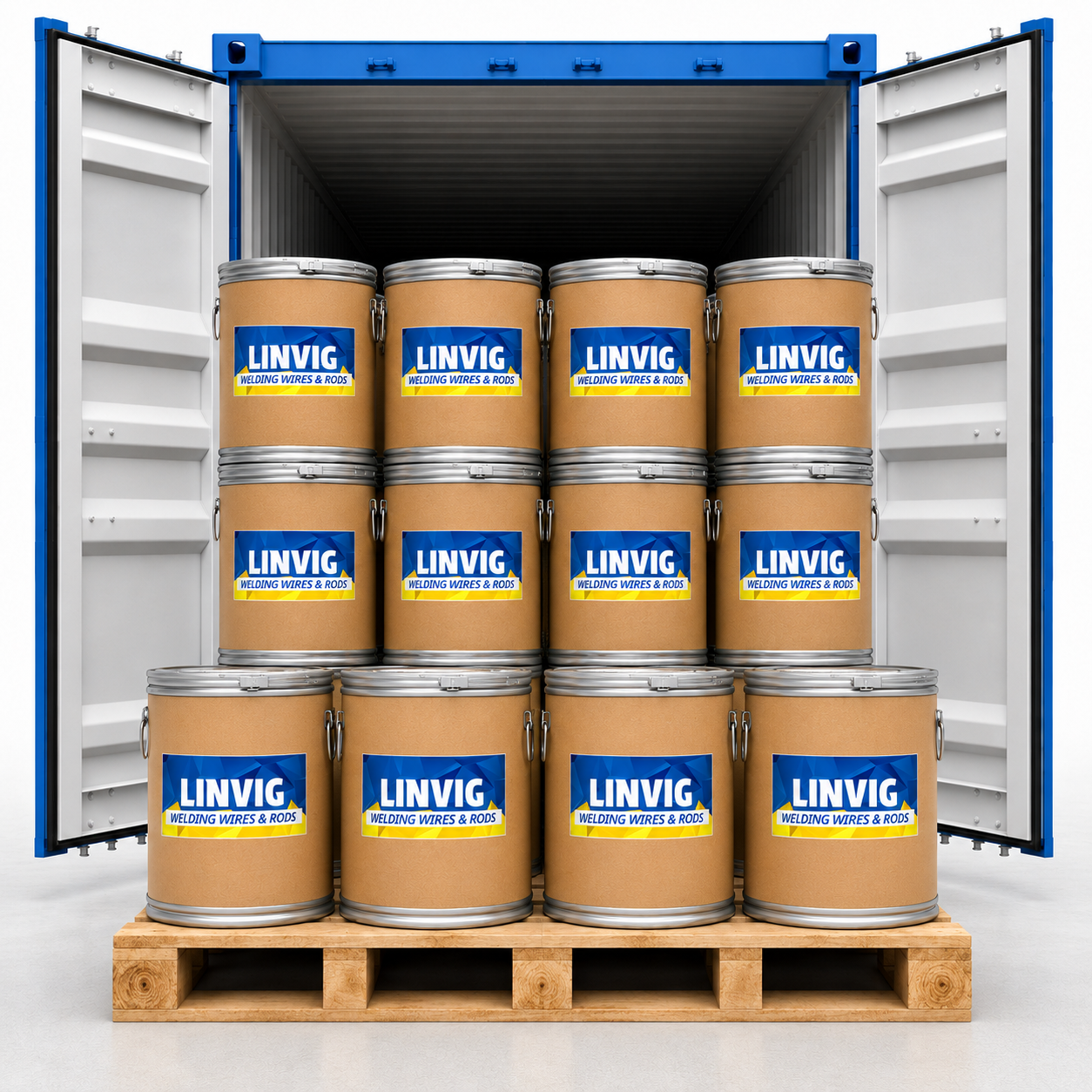

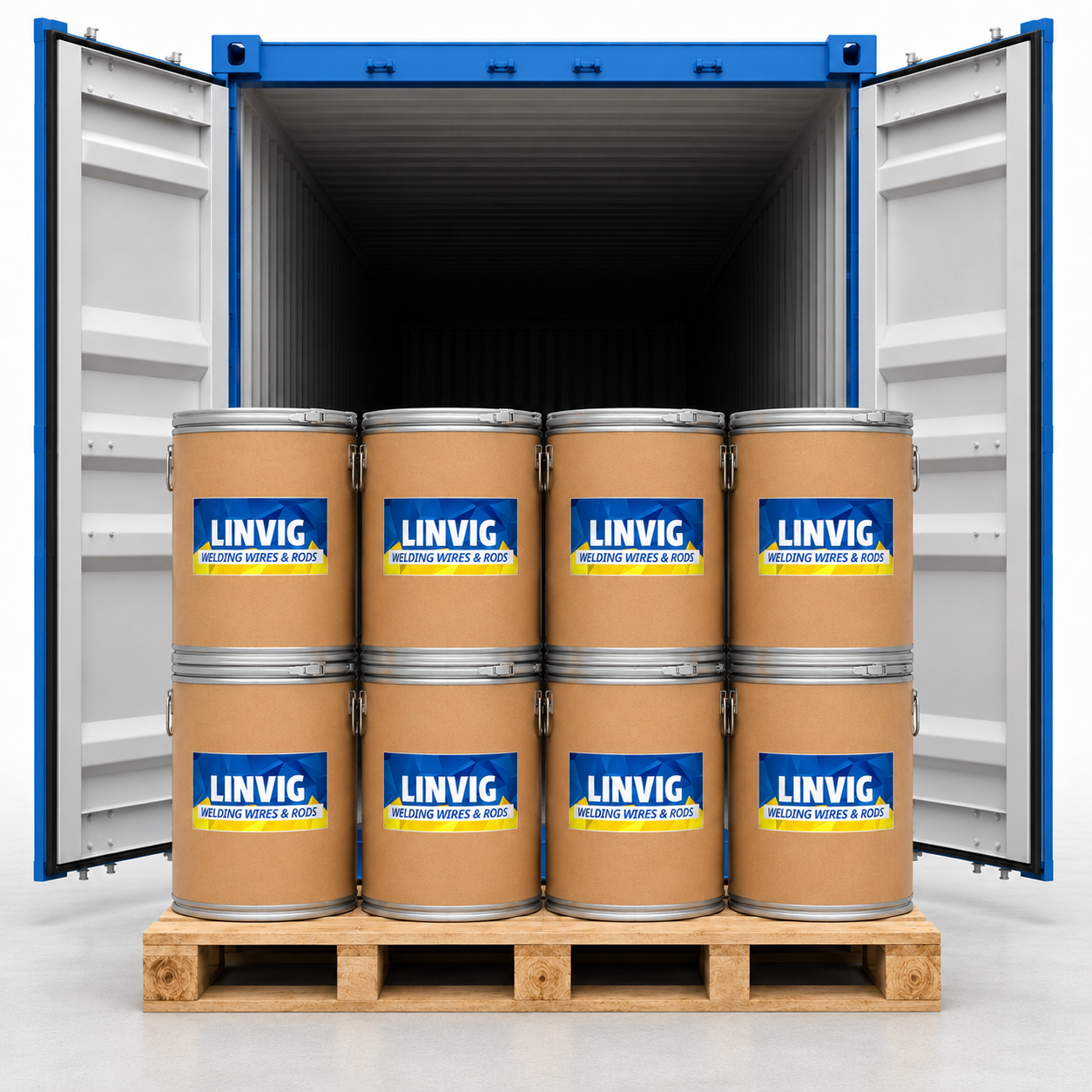

DRUM
ParameterSpecification
Parameter250 Kg
Drum WeightGalvanized steel cover drum / Fibre drum / Pay off Packs
Drum TypeWelding wire wound in bulk drums
Primary PackingEach drum sealed and secured for transport
Cartons Per Pallet4 drums
Pallet TypeWooden pallet
Net Weight Per Pallet1,000 kg
Pallets Per 20' GP Container20 pallets
Total Cartons Per Container80 drums
Total Net Weight20,000 Kg
Container Type20' GP (General Purpose)
FumigationISPM-15 Compliant Wooden Pallets
SPOOL
ParameterSpecification
Parameter15 Kg
Spool WeightD300 (Plastic) / K300 (Metal)
Spool TypeEach spool vacuum sealed
Primary PackingEach spool packed in shrink-wrapped corrugated carton
Cartons Per Pallet72 cartons
Pallet TypeWooden pallet
Net Weight Per Pallet1,080 kg
Pallets Per 20' GP Container22 pallets
Total Cartons Per Container1,584 cartons
Total Net Weight23,760 Kg
Container Type20' GP (General Purpose)
FumigationISPM-15 Compliant Wooden Pallets
WOODEN CASE
ParameterSpecification
Packet Weight5 Kg
Primary PackingPlastic tube packing (1000 mm length)
Secondary Packing4 tubes packed in corrugated carton
Cartons Weight20 kg
Outer Packing8 cartons packed in fumigated wooden case
Net Weight Per Wooden case160 kg
Wooden Cases per pallet160 kg
Cartons Per Type48 cartons
Pallet TypeWooden pallet (ISPM-15 complaint)
Net Weight Per Pallet960 kg
Pallets Per 20' GP Container20 pallets
Total Cartons Per Container960 cartons
Total Wooden Cases Per Container120 cases
Total Net Weight19,200 kg
Container Type20' GP (General Purpose)
FumigationISPM-15 Compliant Wooden Pallets
