Our Stellite Grade 6 (ERCoCr-A) cobalt-based hardfacing alloy is engineered to deliver exceptional wear resistance, high-temperature stability, and superior corrosion performance in severe service conditions. Manufactured in accordance with AWS/SFA 5.21, EN ISO 14700 (S Co1), and DIN 8555 standards, this alloy ensures consistent metallurgical quality, controlled hardness, and reliable performance in demanding service environments.
| Mechanical & Chemical Parameter | |
|---|---|
| GRADE | Stellite Grade 6 |
| AWS/SFA 5.21 | ERCoCr-A |
| EN ISO 14700 | S Co3 |
| DIN 8555 | G/WSG 20-GO-40-CTZ |
| Hardness of weld metal | 400-420 HV |
| Co | Balance |
| C | 0.9-1.4 |
| Si | 2 max |
| Mn | 1 max |
| Cr | 26-32 |
| Mo | 1 max |
| W | 3.0-6.0 |
| Fe | 3 max |
| Ni | 3 max |
| Technical Specification | |
|---|---|
| GRADE | Stellite Grade 6 (ERCoCr-A) |
| Diameter (mm) | 5.0 / 4.0 / 3.20 / 3.15 mm |
| Cut Length (mm) | 1000 |
| Wear Type |
|
| Welding Process | TIG (GTAW) / Oxy-acetylene |
| Layers | Multi-layer (with buffer if needed) |
| Preheat | 150-300°C |
| Surface Finish Form | Bare rod |
| Application |
|
| Features |
|
Seaworthy export packing suitable for bulk industrial handling. Wooden cases are internally lined and externally strapped to prevent damage during transit.
| Parameter | Specification |
|---|---|
| Packet Weight | 5 Kg |

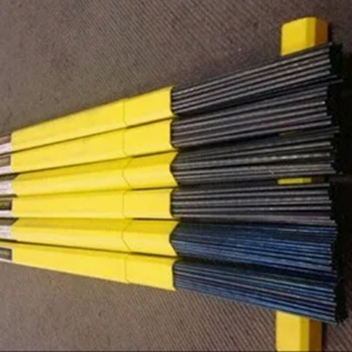

| Primary Packing | Plastic tube packing (1000 mm length) |
| Secondary Packing | 4 tubes packed in corrugated carton |
| Cartons Weight | 20 kg |
| Outer Packing | 8 cartons packed in fumigated wooden case |
| Net Weight Per Wooden case | 160 kg |
| Wooden Cases per pallet | 160 kg |
| Cartons Per Type | 48 cartons |
| Pallet Type | Wooden pallet (ISPM-15 complaint) |
| Net Weight Per Pallet | 960 kg |
| Pallets Per 20' GP Container | 20 pallets |
| Total Cartons Per Container | 960 cartons |
| Total Wooden Cases Per Container | 120 cases |
| Total Net Weight | 19,200 kg |
| Container Type | 20' GP (General Purpose) |
| Fumigation | ISPM-15 Compliant Wooden Pallets |
